LangSmith Engine on Self-hosted

Self-hosted Engine requires LangSmith Helm chart 0.16.0 or later and a license that includes the Engine entitlement. It is not available on earlier chart versions. Contact our sales team to have the entitlement added to your order.Running Engine on your own model providers and air-gapped installations require LangSmith Helm chart 0.17.0 or later. Earlier chart versions run Engine only on LangSmith Intelligence.

LangSmith Engine is an agent within LangSmith that monitors your production traces, clusters them into issues, diagnoses each issue against your source code, proposes a fix as a PR, and identifies ground truth evals to add to your datasets. For a product overview, see Engine. In self-hosted LangSmith, Engine’s analysis and fix workflow runs in your environment. An Organization Admin chooses where Engine’s model calls run:

LangSmith Intelligence (LSI): a LangChain-managed zero data retention (ZDR) service that runs Engine’s models for you.
Your own model providers: Anthropic, OpenAI, Amazon Bedrock, Google Vertex AI, or Azure AI Foundry, with credentials or cloud identity you control.

Engine reports usage metadata to LangSmith Intelligence for billing, unless your installation is air-gapped. This page covers model providers, data handling, and installation. To give Engine access to source code, also configure a GitHub App. GitHub is optional for trace analysis.

Red teaming and automatic issue validation are unavailable on self-hosted LangSmith. You can investigate issues, generate fixes, and open PRs without those features.

Engine works with two kinds of data:

Code (optional): Your agent’s source, which Engine reads to diagnose issues and propose fixes.
Traces: Runtime data from your agents, which can include user messages, tool outputs, and PII.

To diagnose issues, generate fixes, and write evaluators, Engine sends the parts of this data it needs to its models, on LangSmith Intelligence or your own model providers.

Choose how Engine runs its models

Each organization chooses how Engine runs its models under Settings > Engine > Model providers.

	LangSmith Intelligence	Your own model providers
Who runs the models	LangChain, with the providers it selects	Your provider accounts
Credentials	None. Engine authenticates with your LangSmith license.	API keys or cloud identity you provide
Model selection	Managed and tuned by LangChain	Managed by LangChain, within the model families your providers offer
Data processing agreement	LangChain’s, with ZDR for every provider	Yours, with each provider you use
Billing	LangChain bills Engine’s usage in LSUs.	Your provider bills you for model calls. LangChain bills Engine’s usage in LSUs, at a lower rate than LangSmith Intelligence.
Availability	AWS US	Any cloud, with supported models and endpoints your cluster can reach

For LangSmith Intelligence in other clouds or regions, contact our sales team.

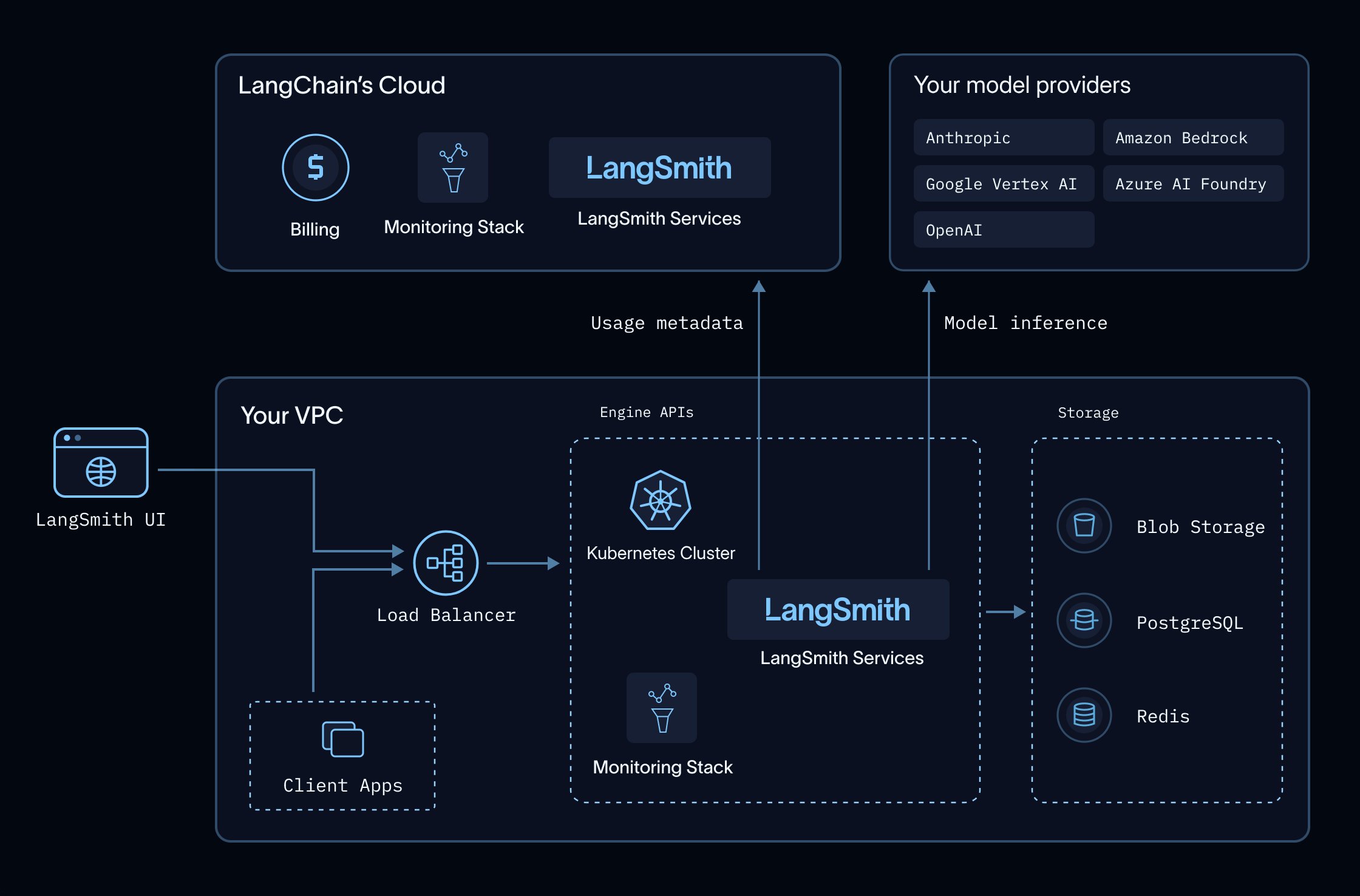

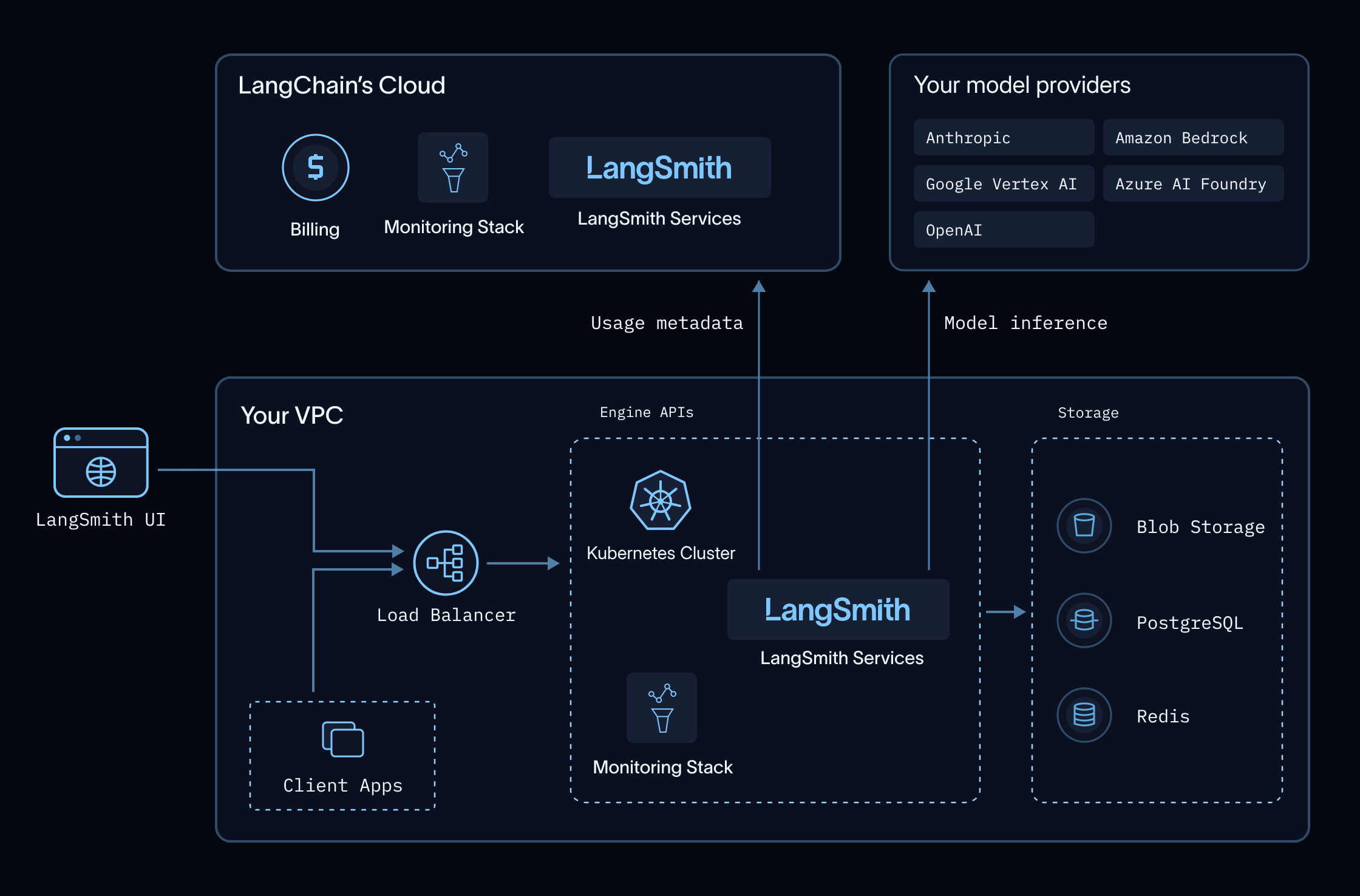

Architecture diagram of self-hosted LangSmith in your VPC sending model inference to your model providers and usage metadata to LangChain's cloud. — Your own model providers: Engine runs in your VPC and calls your providers directly; only usage metadata goes to LangChain.

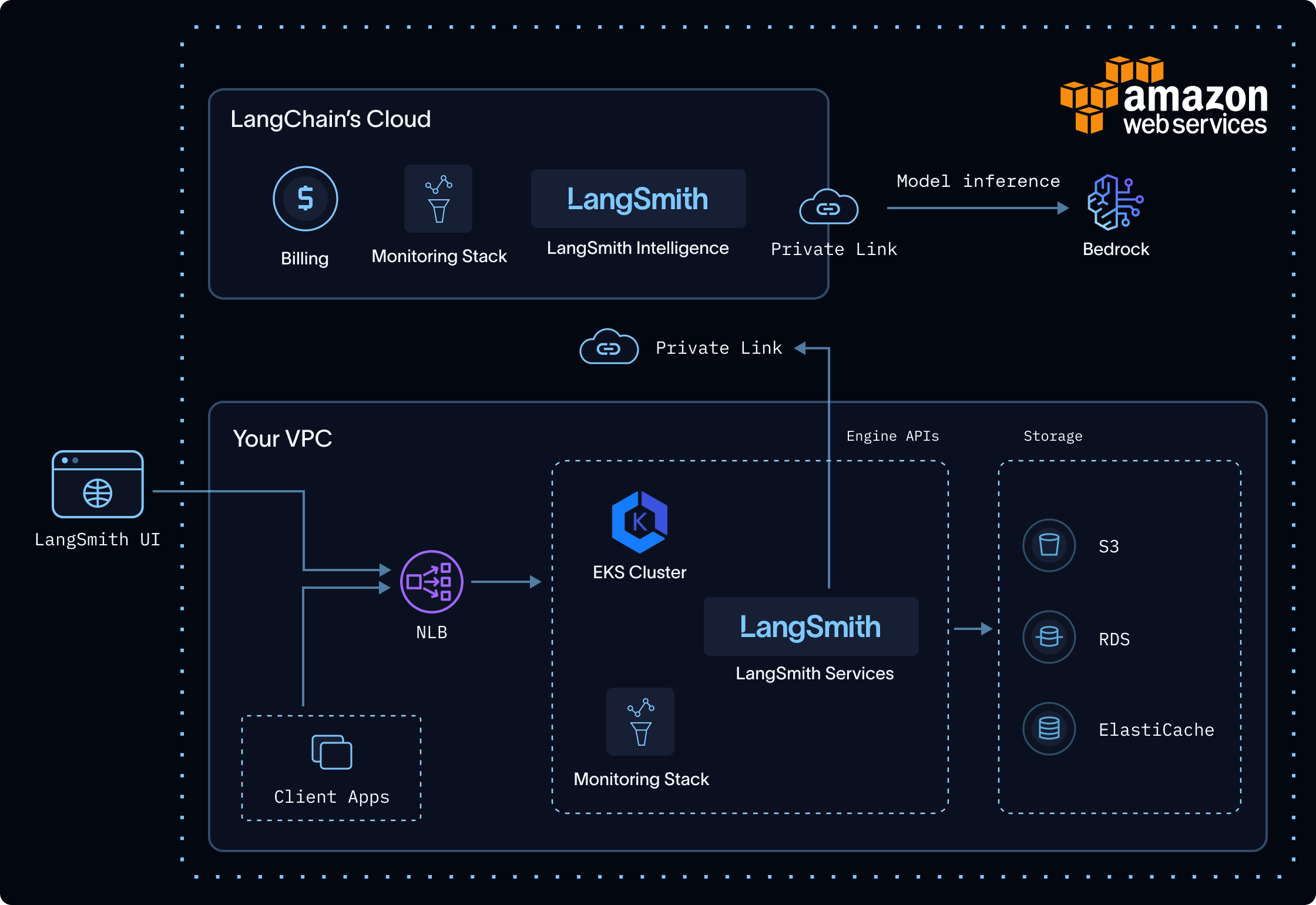

LangSmith Intelligence

LSI is a LangChain-managed service that runs Engine’s models. Engine sends its model requests to https://beacon.aws.langchain.com/intelligence, authenticated with your LangSmith license, so you don’t provide model-provider credentials. Each request carries the trace content, code, and intermediate outputs Engine needs to do its work. Engine uses different models, each tuned for its role, to cluster issues, diagnose root causes against your code, generate fixes, and write evaluators that verify them. LangChain tunes these models for quality and token efficiency, and updates them as better models become available. Your cluster must allow outbound HTTPS to that gateway. The connection can use public egress or private connectivity. To keep Engine traffic on private networking, follow Connect with AWS PrivateLink. If the connection to LSI is unavailable, Engine stops and returns an error. The rest of your LangSmith deployment is unaffected, and Engine tries again on its next scheduled scan.

Your own model providers

Engine calls your providers directly from your cluster. Prompts and responses go only to your provider, under your agreement with that provider. LangChain doesn’t receive them. Sandbox usage by Engine is included in Engine’s LSU billing. The sandboxes Engine uses to diagnose issues, generate fixes, and write evaluators do not incur additional Sandboxes product charges. Engine supports Anthropic, OpenAI, Amazon Bedrock, Google Vertex AI, and Azure AI Foundry. It uses a mix of models from the providers you select, so for the best results, add credentials for every provider you have access to. Enable access to Anthropic’s Claude models and OpenAI’s GPT models in your provider accounts, where your provider offers them. On Azure, use an Azure AI Foundry resource. To confirm that Engine can reach the models it uses, run Test connection.

Where Engine processes and stores data

In a self-hosted deployment, Engine separates data handling between your environment and LangChain’s:

Your environment: Engine orchestration and LangSmith-stored traces remain in your self-hosted environment.
LangChain’s environment, with LangSmith Intelligence: LSI and the model provider process content that Engine sends. LSI retains only usage metadata.
Your model providers, with your own providers: Your providers process content that Engine sends, under your agreements with them. LangChain receives only usage metadata.

If you enable external notifications, Engine also sends notification content to your configured Slack channels or webhook endpoints. For Slack app setup and the content sent to Slack, see Connect self-hosted LangSmith to Slack.

What LangSmith Intelligence retains

LSI does not persist the content of prompts or model responses. It retains the following metadata for usage attribution and billing:

Account, workspace, and project identifiers used to attribute usage.
Model and token-usage metadata used for billing.

When Engine runs on your own model providers, this metadata is all LSI receives. Your self-hosted LangSmith records Engine’s usage and reports it to the endpoint in engine.intelligenceBaseUrl every hour, authenticated with your license. For LangChain-managed inference, the model-provider retention and training commitments are described in Engine security. When you use your own providers, their retention and training policies depend on your agreements with them.

Install Engine

Engine is disabled by default. It requires Sandboxes, a connection to LangSmith Intelligence unless your installation is air-gapped, an externally reachable config.hostname, and Engine’s keys. Complete the prerequisites before enabling Engine. Engine and Insights run from the same image and share one deployment. Insights is not required for Engine. If your installation already runs Insights, enabling Engine adds configuration rather than new pods.

Components

Enabling Engine provisions or reuses:

standalone-insights-api-server: serves both the engine and insights graphs.
standalone-insights-queue: background run processing for Engine and Insights.
A dedicated PostgreSQL and Redis instance for the shared deployment, each replaceable with an external instance.
The sandbox components described under Enable Sandboxes.

Engine also adds configuration to platform-backend and ingest-queue, which dispatch and schedule its runs.

Prerequisites

Enable Sandboxes

Complete Enable Sandboxes first, including the KVM-capable node pool and JuiceFS storage.Engine’s sandboxes are associated with one workspace. An install with Engine must have a shared organization. If the shared organization has exactly one workspace, LangSmith uses that workspace. If the shared organization has more than one workspace, LangSmith does not choose one automatically. You must set engine.sandboxTenantId to the workspace ID.

Use a workspace reserved for Engine:

Engine’s sandboxes are not billed on the Sandboxes product because Engine meters its own usage in LSUs.
Engine’s sandboxes use the same concurrent sandbox, CPU, and memory quotas as other sandboxes in the workspace. If the workspace is near its limits, Engine runs can fail or leave less capacity for interactive sandboxes.
Engine’s sandboxes are listed in that workspace and can be stopped by anyone with access to it.
Each sandbox runs agent-generated code.
Repository credentials remain in the sandbox auth proxy and are not available to code running inside the sandbox.

Confirm the license entitlement

Engine is licensed separately, in the same way as Sandboxes. Your license must carry the Engine entitlement. LangSmith validates your license key against https://beacon.langchain.com at startup and periodically thereafter, so the entitlement takes effect without you changing any configuration once it is added to your order.

Allow egress to LangSmith Intelligence and your model providers

Set engine.intelligenceBaseUrl for how Engine will run its models, and allow outbound HTTPS from the cluster to that URL:

Engine runs its models on	`engine.intelligenceBaseUrl`
LangSmith Intelligence	`https://beacon.aws.langchain.com/intelligence`
Your own model providers	`https://beacon.langchain.com/intelligence` (the default)
Your own model providers, air-gapped	`""` (see Air-gapped installations)

The AWS URL also records usage, so it works for organizations on either option. The default URL only records usage, on the same host self-hosted LangSmith already uses for license verification and billing telemetry, so it adds a path rather than a new egress destination.If Engine will run on your own model providers, also allow outbound HTTPS from the standalone-insights pods to each provider’s API endpoint. To keep that traffic on private networking, see Connect to your providers privately.Add each destination as a specific allowlist entry rather than opening general egress. To keep traffic to LangSmith Intelligence on private networking, connect with AWS PrivateLink. Requests to LangSmith Intelligence use a short-lived license JWT obtained during LangSmith license verification. Engine’s traffic is separate from the billing and operational telemetry described in Configure egress, even where it shares a host.

Verify your hostname is externally reachable

Engine’s sandboxes call your LangSmith install using the langsmith CLI, so config.hostname must be reachable from the sandbox network. Helm validation rejects localhost and in-cluster *.svc addresses.Serve that hostname through your ingress with TLS, as described in Set up an ingress. Engine’s sandbox network policy permits access to your LangSmith hostname, the configured GitHub hosts, and the Python package registries. Per-run credentials are injected by a proxy outside the sandbox rather than being readable inside it.For GitHub connections, also allow the outbound requests and inbound webhooks required by your GitHub environment. Browser access to LangSmith alone does not establish webhook connectivity from GitHub.

Generate Engine's keys

Engine needs two keys of its own:

Encryption key (engine_encryption_key): a Fernet key that encrypts the run payloads LangSmith passes to Engine, which carry short-lived credentials.
python -c "from cryptography.fernet import Fernet; print(Fernet.generate_key().decode())"
Usage signing secret (engine_usage_signing_secret): signs the usage reports Engine sends to LangSmith. Use at least 32 random characters.
openssl rand -hex 32

Store both in your predefined Kubernetes Secret before installing or upgrading the chart. See Use an existing secret. When Helm can read the existing Secret from the cluster, the chart checks for both keys and names any that are missing. helm template and GitOps renders skip that lookup, so verify the keys are present separately.To rotate the encryption key, copy the current value to engine_encryption_key_previous and set the new key as engine_encryption_key. The previous key is accepted for decryption only, so runs encrypted just before the swap still complete.When introducing or rotating the usage signing secret, pause new Engine work and wait for running scans to finish. Update platform-backend, ingest-queue, and the shared Engine and Insights API server and queue to use the same signing secret. After all four components are healthy, resume Engine and verify an analysis and Engine usage. The previous encryption key does not provide a fallback for usage signatures.

Enable with Helm

Add the following to your langsmith_config.yaml, alongside the complete Sandboxes values from Enable Sandboxes. These examples show only the Engine-specific values and the sandboxes.enabled flag.

Using Kubernetes secrets (recommended)
Using inline values

Reference your existing Secret by name. The chart reads engine_encryption_key and engine_usage_signing_secret from it.

config:
  existingSecretName: "<your-secret-name>"
  # Must be reachable from the sandbox network.
  hostname: "https://langsmith.example.com"

engine:
  enabled: true
  intelligenceBaseUrl: "https://beacon.aws.langchain.com/intelligence"

sandboxes:
  enabled: true

Set Engine’s keys directly in your config file.

This puts live credentials in your config file. Do not commit it to version control; prefer the Kubernetes Secret.

config:
  hostname: "https://langsmith.example.com"

engine:
  enabled: true
  intelligenceBaseUrl: "https://beacon.aws.langchain.com/intelligence"
  encryptionKey: "<engine-encryption-key>"
  usageSigningSecret: "<engine-usage-signing-secret>"

sandboxes:
  enabled: true

If your install has a shared organization with more than one workspace, set the workspace that owns Engine’s sandboxes:

engine:
  sandboxTenantId: "<workspace-id>"

Use cloud identity for your model providers

Amazon Bedrock, Google Vertex AI, and Azure AI Foundry can authenticate with the cloud identity of Engine’s pods instead of credentials saved in LangSmith. List those providers in engine.workloadIdentityProviders. Configure identity for both the API server and queue of the shared Engine and Insights deployment:

Amazon EKS
Google GKE
Azure AKS

Configure IAM roles for service accounts (IRSA). Trust the namespace and service account of both Engine workloads, and grant the role access to the Bedrock models Engine uses.

engine:
  workloadIdentityProviders:
    - bedrock

engineInsightsAgent:
  apiServer:
    serviceAccount:
      annotations:
        eks.amazonaws.com/role-arn: "arn:aws:iam::<account-id>:role/<engine-model-access-role>"
  queue:
    serviceAccount:
      annotations:
        eks.amazonaws.com/role-arn: "arn:aws:iam::<account-id>:role/<engine-model-access-role>"

Enable Workload Identity Federation for GKE on the cluster and the node pools that run Engine. Grant each Engine Kubernetes service account roles/iam.workloadIdentityUser on the Google service account. Bind each member as serviceAccount:<cluster-project-id>.svc.id.goog[<namespace>/<kubernetes-service-account>].Grant the Google service account Vertex AI inference permissions, such as roles/aiplatform.user, in the project that hosts the models. Enable the required models in that project.

engine:
  workloadIdentityProviders:
    - vertex

engineInsightsAgent:
  apiServer:
    serviceAccount:
      annotations:
        iam.gke.io/gcp-service-account: "<service-account>@<project-id>.iam.gserviceaccount.com"
    deployment:
      extraEnv:
        - name: GOOGLE_CLOUD_PROJECT
          value: "<vertex-project-id>"
  queue:
    serviceAccount:
      annotations:
        iam.gke.io/gcp-service-account: "<service-account>@<project-id>.iam.gserviceaccount.com"
    deployment:
      extraEnv:
        - name: GOOGLE_CLOUD_PROJECT
          value: "<vertex-project-id>"

Engine uses Application Default Credentials (ADC) to resolve the identity and project. Set GOOGLE_CLOUD_PROJECT on both workloads to the intended Vertex AI project. Engine currently uses the global Vertex AI location; the required models must be available there.

Enable the AKS OIDC issuer and Microsoft Entra Workload ID. Create a federated identity credential for each Engine Kubernetes service account on your managed identity. Use the cluster’s OIDC issuer, audience api://AzureADTokenExchange, and subject system:serviceaccount:<namespace>:<kubernetes-service-account> for each.Grant the identity the Cognitive Services User role, scoped to the Azure AI Foundry resource that hosts Engine’s models. An Azure OpenAI role alone does not establish access to Claude models.

engine:
  workloadIdentityProviders:
    - azure

engineInsightsAgent:
  apiServer:
    serviceAccount:
      annotations:
        azure.workload.identity/client-id: "<managed-identity-client-id>"
    deployment:
      labels:
        azure.workload.identity/use: "true"
  queue:
    serviceAccount:
      annotations:
        azure.workload.identity/client-id: "<managed-identity-client-id>"
    deployment:
      labels:
        azure.workload.identity/use: "true"

Both workloads need the service account annotation and pod label. Save the Foundry resource name under Settings > Engine > Model providers.

A provider listed in engine.workloadIdentityProviders counts as configured without saved credentials, so any Organization Admin can select it. Scope the identity to the models Engine uses.

Saved credentials take precedence over cloud identity. When switching a provider, apply the cloud identity configuration before removing its saved credentials. Then remove only that provider’s saved API keys or service account JSON under Settings > Engine > Model providers. For Bedrock, also remove any saved access key, secret access key, and session token. Keep the Azure AI Foundry resource name and any Bedrock region setting, then test the provider again.

Upgrades from older Insights image pins require one extra check: if your values pin images.engineInsightsAgentImage.repository to the retired langsmith-clio image, remove or update that pin. Engine and Insights now run on langsmith-insights-engine, and the chart rejects langsmith-clio. For more information, see Mirror images for your LangSmith installation.

Validate the updated chart before applying it:

helm template langsmith langchain/langsmith \
  --values langsmith_config.yaml \
  --version <version> \
  --namespace <namespace>

The chart validates Engine values at render time and names missing values. This command does not check keys in an existing Kubernetes Secret; verify those before applying the chart. Apply the updated chart:

helm upgrade -i langsmith langchain/langsmith \
  --values langsmith_config.yaml \
  --version <version> \
  --namespace <namespace> \
  --wait

Verify the installation

Confirm the shared Engine and Insights deployment is running:

kubectl get pods -n <namespace> | grep standalone-insights

Both the API server and queue pods should be Running. Then, confirm platform-backend is healthy, since it dispatches Engine runs:

kubectl rollout status deployment/langsmith-platform-backend -n <namespace>

If Engine does not appear in the LangSmith UI after this, the most common causes are a license without the Engine entitlement and the organization-level toggle described in Turn on Engine in LangSmith. After enabling and configuring Engine in the LangSmith UI, test each selected provider, then start an Engine analysis and confirm that results appear for the tracing project. This verifies the complete path through Engine, Sandboxes, and your model providers or LangSmith Intelligence. Running pods alone does not verify that path. Check Engine usage under Settings > Engine for aggregate spend by workspace and project. Usage reporting and billing updates are asynchronous, so spend may appear later than the analysis results. For an air-gapped installation, verify the recorded usage through Usage export. If the analysis does not complete, check that Engine pods are running, the sandbox workspace has quota available, and the cluster can reach your model providers or the LangSmith Intelligence gateway URL configured in engine.intelligenceBaseUrl.

Turn on Engine in LangSmith

Enabling Engine in Helm makes the feature available; it does not start any scans. After enabling the chart values, finish setup in LangSmith:

An Organization Admin turns Engine on for the organization under Settings > Engine. For more information, see Find and fix issues.
An Organization Admin chooses how Engine runs its models under Settings > Engine > Model providers. Engine doesn’t start any runs until this is saved.
A user whose role can update tracing projects turns on Engine for a tracing project from its Engine tab. For more information, see Set up Engine.

To read source code and open pull requests, Engine also needs a GitHub connection. An operator configures the GitHub App, then workspace users connect repositories.

Choose model providers

Under Settings > Engine > Model providers, an Organization Admin selects LangSmith Intelligence, one or more of your own providers, or both. Credentials are saved as organization secrets and apply to every workspace in the organization. LangSmith Intelligence appears only when your installation’s engine.intelligenceBaseUrl serves Engine’s models. When LangSmith Intelligence is available and selected, it takes priority over your selected providers. Leave it unselected to keep inference on your own providers. Engine selects models from the providers you enable. Enable access to Claude 5.5-class models or GPT 5.6-class models in your provider accounts, depending on which models each provider offers. Model requirements follow the Engine image tag in images.engineInsightsAgentImage.tag, not the Helm chart version. Run Test connection to identify the required models and confirm access for your installed Engine image. To use your own providers:

Add credentials

Click Add credentials next to the provider and enter:

Anthropic
Amazon Bedrock
Google Vertex AI
Azure AI Foundry
OpenAI

An Anthropic API key.

An AWS access key ID and secret access key, with an optional session token, or a Bedrock API key (bearer token). Optionally, an AWS region.Engine uses the Bedrock Mantle API. Enable access to the required models in the selected AWS account and region. Grant the calling identity Mantle inference and model-subscription permissions; see AmazonBedrockMantleInferenceAccess for the required actions.If no region is saved, Engine uses us-east-1, including with workload identity. It does not inherit the EKS cluster’s region.To use the cloud identity of Engine’s pods instead, see Use cloud identity for your model providers.

A service account key in JSON format. Engine uses the JSON’s project_id as the inference project and calls the global location.Enable the required models through Model Garden in that project. Grant the service account roles/aiplatform.user in the same project.To use the cloud identity of Engine’s pods instead, see Use cloud identity for your model providers.

A provider with complete credentials shows as configured. To change them later, click the key icon next to the provider.

Test the provider

Click Test connection. Engine sends a small request to each model it uses on that provider, with the saved credentials or configured cloud identity. It shows whether each request succeeded and, if not, why.

Select providers and save

Select the providers Engine may use, then save.

If Engine runs fail after you save:

No provider selected: Engine doesn’t start runs until at least one provider is selected and saved.
Rejected credentials: Test connection reports which provider rejected them. Update the credentials and test again.
Model not available: enable the model in your provider account, then test again.

Disable Engine

Set engine.enabled to false and re-apply:

engine:
  enabled: false

Engine stops dispatching runs. Insights shares the same deployment, so the standalone-insights pods keep running when insights.enabled is true.

Connect privately

Engine works over public egress. To keep its traffic on private networking, connect to LangSmith Intelligence with AWS PrivateLink, or connect to your own model providers through your cloud’s private endpoints.

Connect with AWS PrivateLink

The LangSmith Intelligence gateway, beacon.aws.langchain.com, routes requests to Amazon Bedrock in LangChain’s AWS environment. Before configuring PrivateLink, complete Install Engine, including its Helm and egress configuration. AWS PrivateLink routes Engine traffic from your VPC to LSI without exposing that traffic to the public internet. The LSI endpoint service is hosted in us-east-2, and AWS supports access from VPCs in other regions. Before you begin, collect your AWS account ID, VPC ID, private subnet IDs, and a security group for the interface endpoint. Configure that endpoint security group to allow inbound TCP traffic on port 443 only from the security group attached to the nodes or workloads that run Engine, or from the smallest private CIDR that contains them. Do not allow 0.0.0.0/0. To connect your VPC to LSI:

Request access

Contact your account representative or sales@langchain.dev with your AWS account ID. LangChain adds your account to the endpoint service’s allowed principals list.

Create the interface VPC endpoint

Configure the AWS provider for the region that contains your VPC. Keep service_region set to us-east-2, including when your VPC is in another region. Select one private subnet per availability zone.

The service_region argument requires HashiCorp AWS provider 5.82.0 or later.

resource "aws_vpc_endpoint" "langsmith_intelligence" {
  vpc_id              = var.vpc_id
  service_name        = "com.amazonaws.vpce.us-east-2.vpce-svc-054f37092752bff6b"
  service_region      = "us-east-2"
  vpc_endpoint_type   = "Interface"
  subnet_ids          = var.private_subnet_ids
  security_group_ids  = [var.security_group_id]
  private_dns_enabled = false
}

Wait for LangChain to accept the connection

The endpoint status changes from pendingAcceptance to available after LangChain accepts the connection. Allow a few minutes for the change to propagate before testing connectivity.

Route the LSI hostname to the endpoint

Enable DNS resolution and DNS hostnames for your VPC. Then, create a Route 53 private hosted zone and alias record so beacon.aws.langchain.com resolves to the VPC endpoint inside your VPC. Keep this hostname unchanged so TLS certificate validation succeeds. The private hosted zone also prevents fallback to public DNS when the endpoint is unavailable.

resource "aws_route53_zone" "langsmith_intelligence" {
  name = "beacon.aws.langchain.com"

  vpc {
    vpc_id = var.vpc_id
  }
}

resource "aws_route53_record" "langsmith_intelligence" {
  zone_id = aws_route53_zone.langsmith_intelligence.zone_id
  name    = "beacon.aws.langchain.com"
  type    = "A"

  alias {
    name                   = aws_vpc_endpoint.langsmith_intelligence.dns_entry[0].dns_name
    zone_id                = aws_vpc_endpoint.langsmith_intelligence.dns_entry[0].hosted_zone_id
    evaluate_target_health = true
  }
}

If workloads use a corporate DNS resolver instead of the Amazon-provided resolver, configure conditional forwarding to Route 53 Resolver or create an equivalent private DNS override for beacon.aws.langchain.com that points to the endpoint DNS name.

Verify private connectivity

From a node or container that runs Engine, resolve the gateway hostname:

getent ahostsv4 beacon.aws.langchain.com

Confirm that the result contains the private IP addresses assigned to the endpoint network interfaces. Then start an analysis and confirm that it completes successfully. If the analysis does not complete, review the Engine installation and egress configuration.

Connect to your providers privately

Engine calls each provider’s standard API hostname from the standalone-insights pods. To keep that traffic off the public internet, set up your cloud’s private connection to the provider so the same hostname resolves to private addresses inside your network:

Provider	Hostname Engine calls	Private connection
Amazon Bedrock	`bedrock-mantle.<region>.api.aws`	An interface VPC endpoint for `com.amazonaws.<region>.bedrock-mantle`, with private DNS enabled or a Route 53 private hosted zone for the hostname
Google Vertex AI	`<region>-aiplatform.googleapis.com`, or `aiplatform.googleapis.com` for the global region	Private Service Connect for Google APIs, with private DNS for `googleapis.com`
Azure AI Foundry	`<resource>.openai.azure.com` and `<resource>.services.ai.azure.com`	A private endpoint for the Foundry resource, with its private DNS zones
Anthropic, OpenAI	`api.anthropic.com`, `api.openai.com`	Not available. These providers need public egress.

Engine doesn’t accept custom endpoint URLs, so private connectivity works through DNS: the standard hostname must resolve to your private endpoint from the Engine pods. If Engine authenticates with cloud identity, the pods also need to reach your cloud’s token service, such as an interface VPC endpoint for AWS STS on AWS. With saved Vertex AI service account JSON, also allow HTTPS to oauth2.googleapis.com for token exchange, alongside aiplatform.googleapis.com for inference. Usage reporting to LangSmith Intelligence is a separate connection. On AWS, https://beacon.aws.langchain.com/intelligence records usage and supports AWS PrivateLink, so an installation can run Engine on Bedrock and report usage without public egress. The default https://beacon.langchain.com/intelligence needs public egress.

Air-gapped installations

Installations with an offline license and no connection to LangSmith Intelligence can run Engine on their own model providers:

Set engine.intelligenceBaseUrl to "".
Choose your own model providers under Settings > Engine > Model providers. LangSmith Intelligence isn’t available.
Allow outbound HTTPS from the standalone-insights pods to your model providers, or route it through your own network path to them.

Engine records its usage in your installation. An Organization Admin downloads it with the rest of your usage from Settings > Usage export and sends it to your LangChain account team on the schedule in your agreement. Air-gapped installations don’t show Engine spend, and spend limits other than 0 aren’t enforced. Set a limit of 0 to pause Engine for an organization or a project.

​Choose how Engine runs its models

​LangSmith Intelligence

​Your own model providers

​Where Engine processes and stores data

​What LangSmith Intelligence retains

​Install Engine

​Components

​Prerequisites

​Enable with Helm

​Use cloud identity for your model providers

​Verify the installation

​Turn on Engine in LangSmith

​Choose model providers

​Disable Engine

​Connect privately

​Connect with AWS PrivateLink

​Connect to your providers privately

​Air-gapped installations

​See also

Choose how Engine runs its models

LangSmith Intelligence

Your own model providers

Where Engine processes and stores data

What LangSmith Intelligence retains

Install Engine

Components

Prerequisites

Enable with Helm

Use cloud identity for your model providers

Verify the installation

Turn on Engine in LangSmith

Choose model providers

Disable Engine

Connect privately

Connect with AWS PrivateLink

Connect to your providers privately

Air-gapped installations

See also
